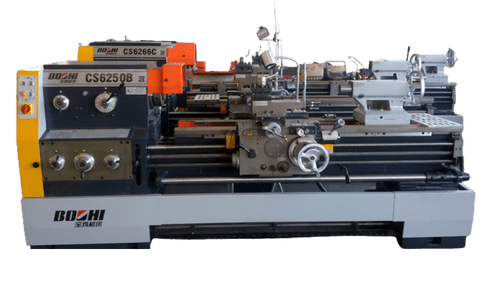

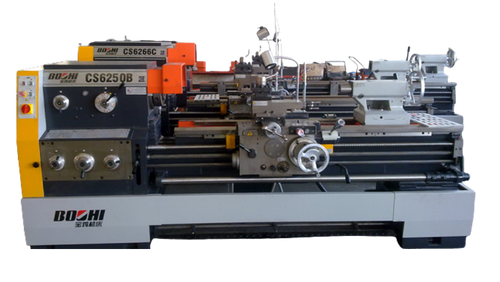

Baoji Universal Centre Lathe MODEL CS 6250B/1500
Call for Price
Please Note delivery will be discussed !
STANDARD EQUIPMENT ~ Supplied with

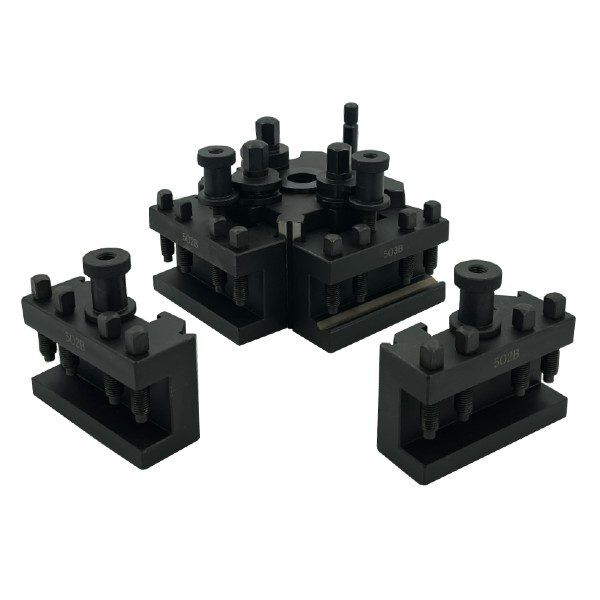

Quick Change Toolpost
Sino Digital Readout
3-Jaw self centering chuck
4-Jaw independent chuck
Face Plate
Fixed and travelling steadies
Machine Lamp
Coolant
Rapid traverse in longitudinal and cross movement
Description
The Baoji Universal Centre Lathe MODEL CS 6250B/1000 is a versatile and durable solution for precision machining. Designed for efficiency and high performance, this lathe is ideal for various turning operations, from threading and cutting to facing and tapering. Whether for workshop or industrial use, it offers reliability and superior craftsmanship, ensuring accurate results across a wide range of materials.
- Model: CS 6250B/1500
- Swing Over Bed: 500 mm
- Spindle Bore: 82 mm
- Speed Range: 25-1600 rpm
- Main Motor Power: 7.5 kW
- Precision and Stability: Designed for long-term operation with minimal vibration, ensuring consistent accuracy.
- User-Friendly Interface: Simplified controls allow for easy operation, making it suitable for both experienced machinists and beginners.
Perfect for metalworking tasks requiring precision and robustness, the Baoji CS 6250B/1000 is a valuable addition to any production line, machine shop, or educational setting.
SPECIFICATIONS
| Item | Unit | Parameter |
|---|---|---|
| Capacity | ||
| Max swing over bed | mm | Ø500 |
| Max swing in gap | mm | Ø710 |
| Effective length in gap | mm | 240 |
| Max swing over slide | mm | Ø300 |
| Max workpiece length | mm | 1500 |
| Machine bed width | mm | 390 |
| Spindle | ||
| Spindle thru-hole | mm | Ø82 |
| Spindle nose | ISO 702/Ⅱ No.8 cam-lock type | |
| Spindle speed | r/min | 24 steps, 9-1600 |
| Spindle motor | kW | 7.5 |
| Tailstock | ||
| Quill dia./travel | mm | Ø75 / 150 |
| Taper of center | MT | 5 |
| Tool Post | ||
| Number of stations / Tool section | 4 / 25×25 | |
| Feed | ||
| Max travel of upper toolpost | mm | 145 |
| Max travel of lower toolpost | mm | 320 |
| X-axis feed | mm/r | 93 sorts, 0.012-2.73 |
| Z-axis feed | mm/r | 93 sorts, 0.028-6.43 |
| Metric thread | mm | 48 sorts, 0.5-224 |
| Inch thread | t.p.i | 48 sorts, 72-1/8 |
| Module thread | πmm | 42 sorts, 0.5-112 |
| DP thread | DP | 42 sorts, 56-1/4 |
| Others | ||
| Coolant pump motor | kW | 0.06 |
| Machine length | mm | 2632 / 3132 / 3632 / 4632 |
| Machine width | mm | 975 |
| Machine height | mm | 1230 |
| Machine weight | kg | 2100 / 2300 / 2500 / 2900 |
