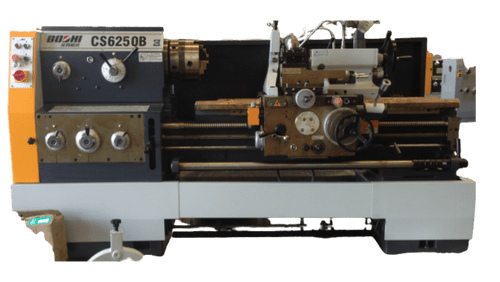

CENTRE LATHE CS6250B/1000

Description

generally in accordance with the manufacturer’s leaflet

incorporating the following main data :



Distance between centres	1000 mm
Swing over bed	500 mm
Swing over cross slide	300 mm
Swing in the gap	710 mm
Spindle nose	D1/ 8
Spindle bore	82 mm
Spindle Speeds	9 – 1600 RPM
Range of metric threads	0.5 – 224 mm
Range of Whitworth threads	72 – 1/8 T.P.I.
Maximum travel of top slide	145 mm
Main Motor	7.5 kW



STANDARD EQUIPMENT



3-Jaw self centering chuck

4-Jaw independent chuck

Face Plate

Fixed and travelling steadies

Machine Lamp

Coolant

Rapid traverse in longitudinal and cross movement

Please Note delivery will be discussed !
