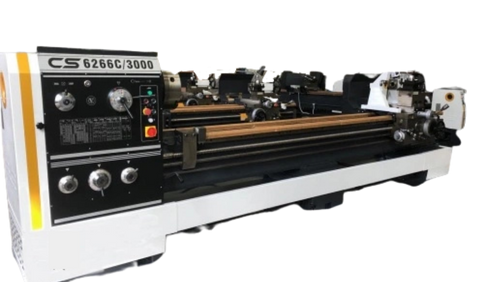

CENTRE LATHE CS6266C/3000
R471 500,00
1 in stock
Description
| Distance between centres | 2000 mm |
| Swing over bed | 660 mm |
| Swing over cross slide | 420 mm |
| Swing in the gap | 870 mm |
| Length of gap | 240 mm |
| Spindle noseCamlock | D1 8 |
| Spindle bore | 105 mm |
| Spindle Speeds (12) | 36 – 1600 RPM |
| Range of metric threads (22) | 1 – 14 mm |
| Range of Whitworth threads (25) | 20-2 T.P.I. |
| Range of Module Threads (18) | 0.5 – 7 mm |
| Range of Diametral Threads (24) | 56 -4DP |
| Tailstock Taper | 5 MT |
| Main Motor | 7.5 kW |
| STANDARD EQUIPMENT |
| 3-Jaw self centering chuck |
| 4-Jaw independant chuck |
| Face Plate |
| Fixed and travelling steadies |
| Morse taper dead centres 2 |
| Headstock reducing sleeve |
| Machine Lamp |
| Coolant |
| Rapid traverse in longitudinal and cross movement |
| Emergency foot brake

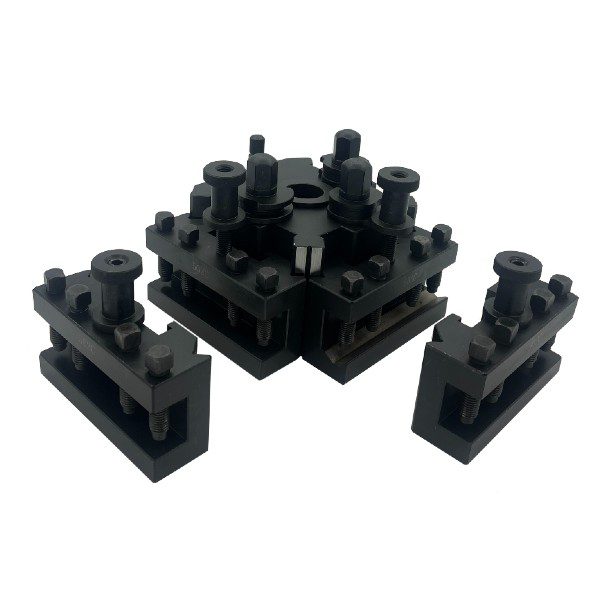

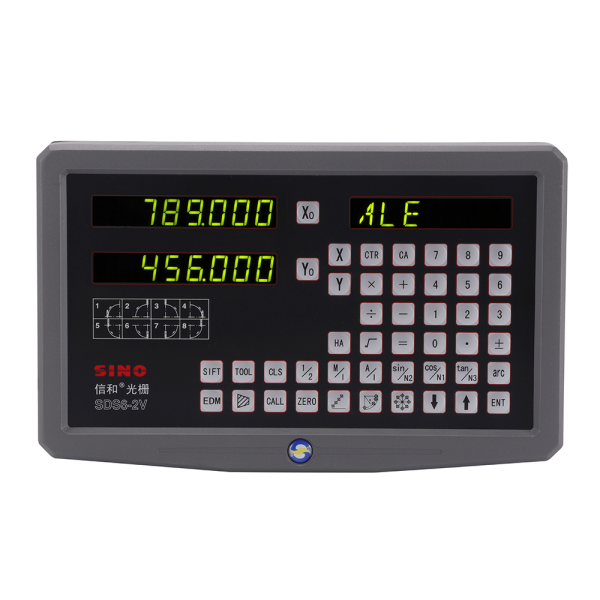

Quick Change Toolpost 2-Axis Sino Digital Readout. |
